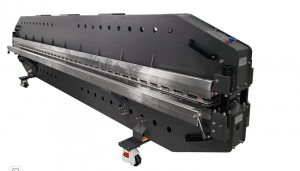

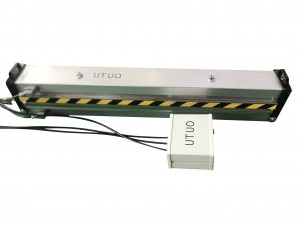

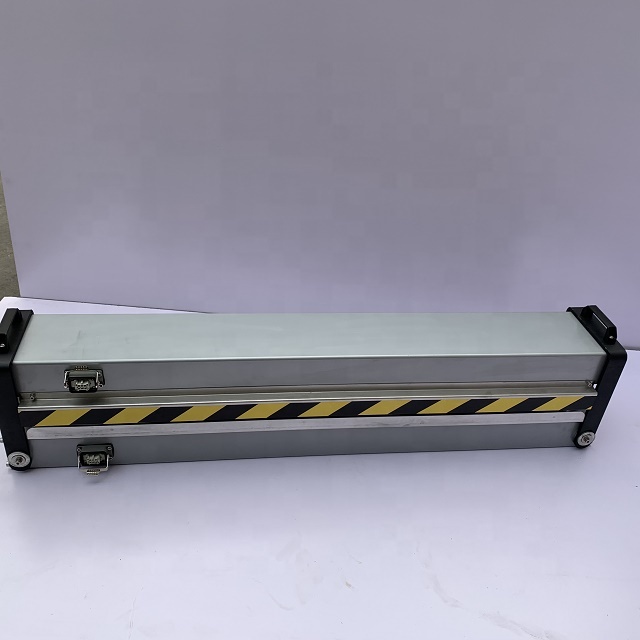

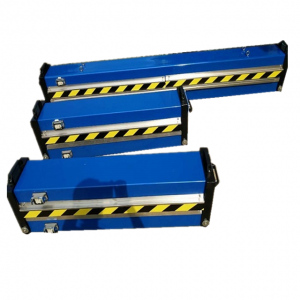

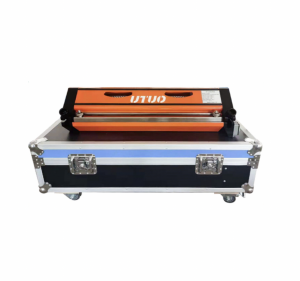

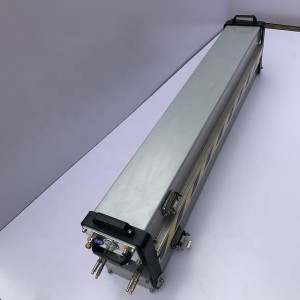

Water cooling hot vulcanizing press machine for PVC and PU conveyor belt
The feature will be as follows:
- Alunium body hot press , more durable and lightweight. Long life time and fast splicing.
- Light weight ,Easy to use and assemble
- Rapid Cooling system within platens Air bag (pressure bags),Air pressure
- Heating to 180℃,about 15~20 mins;180℃ cooling down to 60℃ about 3~5mins (accords to different size press), temperature error(on 650mm Up and bottom hot plate )is less than 3℃.

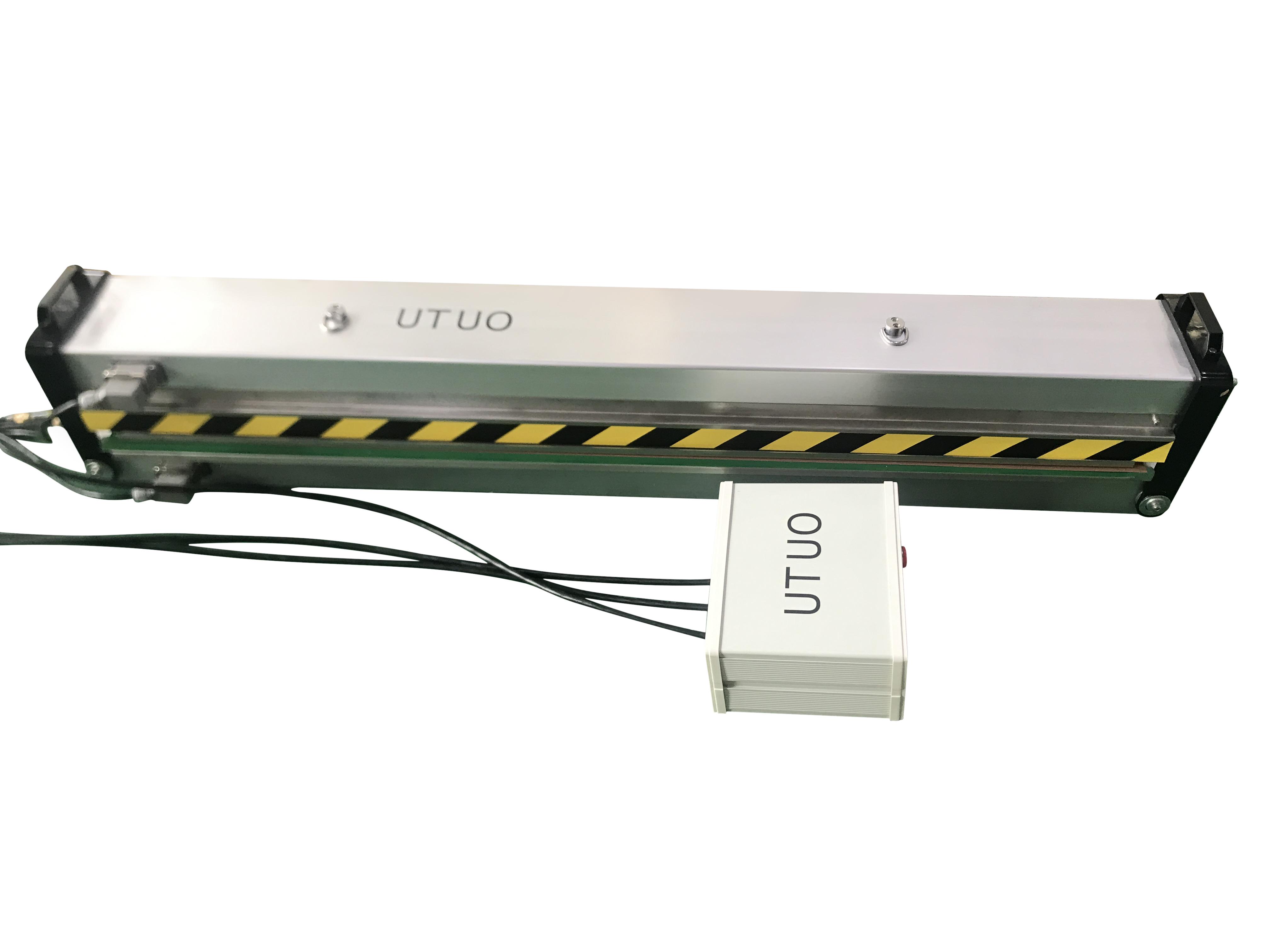

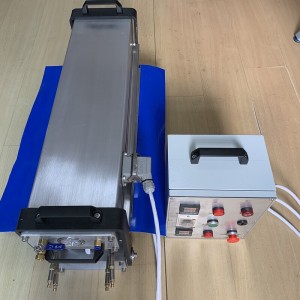

- Reliable and automatic Temperature Control Panel with time control.

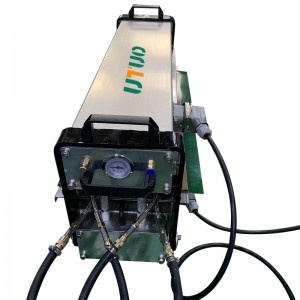

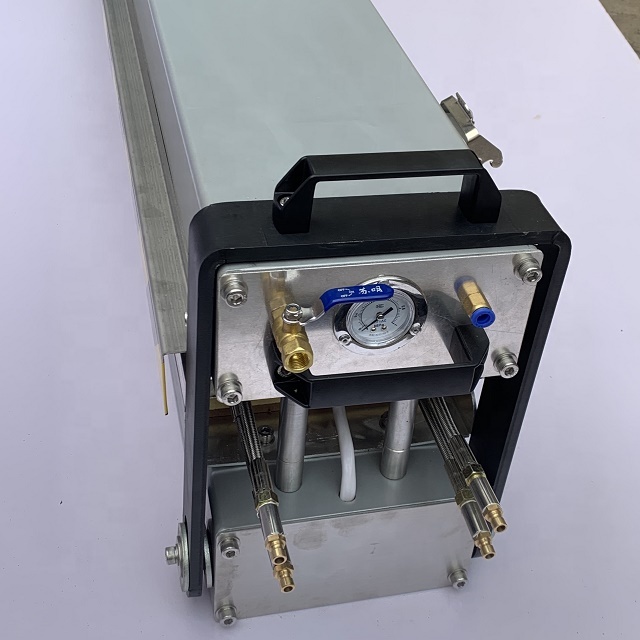

- Water cooling pump
- With steel structure
- If the press is required for workshop use, Opening system & steel housing is Optional.
Technical Parameters:
- Machine Maximum size: from 200MM * 600MM-200MM * 4800MM;
- Voltage : 220V 380V 480V 440V 415V or 400V;
- Pressure within 0-0.3MPa (atmosphere pressure);
- Heating boards are equipped with water cooling device;
- Adjustable within temperature range of 0-200°C;
- Temperature control system could be automatically controlled;
- High-intensity aluminum alloy frame structures

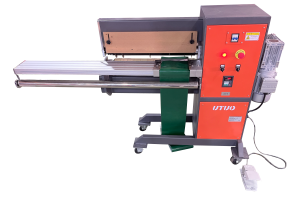

This machine is applied to various kinds of joint connections of conveyor belts made of PVC, PU, PEorrubber-base materials on automatic production lines. In addition, we also manufacture Ply Splitter and Finger Puncher. We supply a complete range of tools for conveyor belt splicing. belt ply splitter.
| Specification | 500 | 1000 | 1600 | 2000 | 3000 |
| Effective Length (mm) | 525 | 1230 | 1740 | 2230 | 3240 |
| Effective width (mm) | 200 | 200 | 200 | 200 | 200 |
| Weight(upper plate,kg) | 18 | 40 | 65 | 79 | 120 |
| Max pressure(Bar) | 1.5 | 1.7 | 2 | 3 | 4.5 |
| Machine height(mm) | 230 | 230 | 230 | 230 | 230 |
| Machine width(mm) | 240 | 240 | 240 | 240 | 240 |
| Power(kw) | 3.2 | 4.5 | 7 | 9 | 12 |
| Max temperature(℃) | 200 | 200 | 200 | 200 | 200 |
