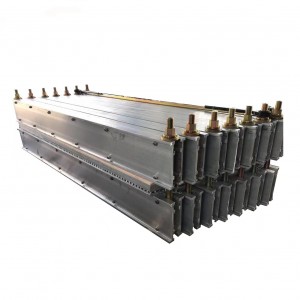

Rubber conveyor belt vulcanizing machine are used for joint rubber belts such as canvas rubber belts, nylon belts and steel wire core belts etc, and can also be used for
joining-up the special purpose rubber belts such as the flame-retardant rubber belts and anti-corrosive rubber belts etc. It can be widely used in the enterprises such as metallurgical
plants, mines, electric power plants and docks etc, and can also be suitable for the ambient without explosive gases and the places without metal corrosive harmful gases.
Rubber Belt Press TECHNICAL PARAMETERS
1. Vulcanizing pressure: 1.5 MPa (15 kg / cm2)
2. Vulcanizing temperature: 145℃ (adjustable)
3. Temperature difference on the wording surface: ±5℃
4. Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 35 min
5. Power voltage: 380V / 50 Hz (3-phase 4- wire), or 660 V;
6. Output voltage of electric control box: 380V / 50 Hz; 220V / 50 Hz (standby);
7. Output current of electric control box: 60A
8. Adjusting range of temperature from temperature regulator: 0～300℃
9. Adjusting range of time from timer: 0～99 min
10. Gap between upper heating plate & lower heating plate after have been pressurized: no more than 0.5 mm
| Model | Belt Width (mm) |
Heating Plate mm |
Power KW |
Cross Beam Size (length x width x height) mm |
Dimensiones mm |
Weight kg |
| UTRW650-830 | 650 | 830×820 | 9.8 | 1080x165x170 | 1322x830x585 | 440 |
| UTRW650-1000 | 1000×820 | 11.8 | 1384x1000x585 | 540 | ||
| UTRW800-830 | 800 | 830×995 | 11.97 | 1250x165x1170 | 1492x830x585 | 515 |
| UTRW800-1000 | 1000×995 | 14.4 | 1554x1000x585 | 630 | ||
| UTRW1000-830 | 1000 | 830×1228 | 14.7 | 1450x165x170 | 1692xx830x585 | 600 |
| UTRW1000-1000 | 1000×1228 | 17.8 | 1754x1000x585 | 715 | ||
| UTRW1200-830 | 1200 | 830×1431 | 17.2 | 1680x165x200 | 1922x830x750 | 662 |
| UTRW1200-1000 | 1000×1431 | 20.7 | 1984x1000x750 | 820 | ||
| UTRW1400-830 | 1400 | 830×1653 | 19.8 | 1900x165x250 | 2142x830x750 | 890 |
| UTRW1400-1000 | 1000×1653 | 23.8 | 2204x1000x750 | 1060 | ||
| UTRW1600-830 | 1600 | 830×1867 | 22.3 | 2140x165x270 | 2382x830x795 | 1150 |
| UTRW1600-1000 | 1000×1867 | 27 | 2444x1000x795 | 1340 | ||
| UTRW1800-830 | 1800 | 830×2079 | 24.9 | 2350x165x320 | 2592x830x900 | 1430 |
| UTRW1800-1000 | 1000×2079 | 30 | 2654x1000x900 | 1630 | ||
| UTRW2000-830 | 2000 | 830×2303 | 27.6 | 2550x165x360 | 2792x830x980 | 1560 |
| UTRW2000-1000 | 1000×2303 | 33.2 | 2854x1000x980 | 1830 | ||
| UTRW2200-830 | 2200 | 830×2478 | 29.7 | 2750x165x360 | 2992x830x980 | 1720 |
| UTRW2200-1000 | 1000×2478 | 35.8 | 3054x1000x980 | 2030 | ||
| UTRW2400-830 | 2400 | 830×2678 | 31.8 | 2940x165x360 | 3192x830x980 | 1880 |
| UTRW2400-1000 | 1000×2678 | 38.9 | 3254x1000x980 | 2250 |
