PVC Conveyor Belt Joint Machine
PVC conveyor belt joint machine is a device used to join or splice together PVC conveyor belts. PVC conveyor belts are used in a variety of industries, such as food processing, packaging, and transportation, because they are durable, flexible, and resistant to moisture and chemicals.
The joint machine typically uses heat and pressure to create a strong and reliable joint between two sections of PVC conveyor belt. The process involves cutting the ends of the two sections to be joined at an angle, then heating the ends using a heating element. Once the ends are sufficiently heated, they are pressed together and held in place until they cool and the joint solidifies.
UTUO have different models belt joint machines for different belt width ranges.
• 300 mm effective
• 600 mm effective
• 900 mm effective
• 1200 mm effective
• 1500 mm effective
• 1800 mm effective
• 2100 mm effective

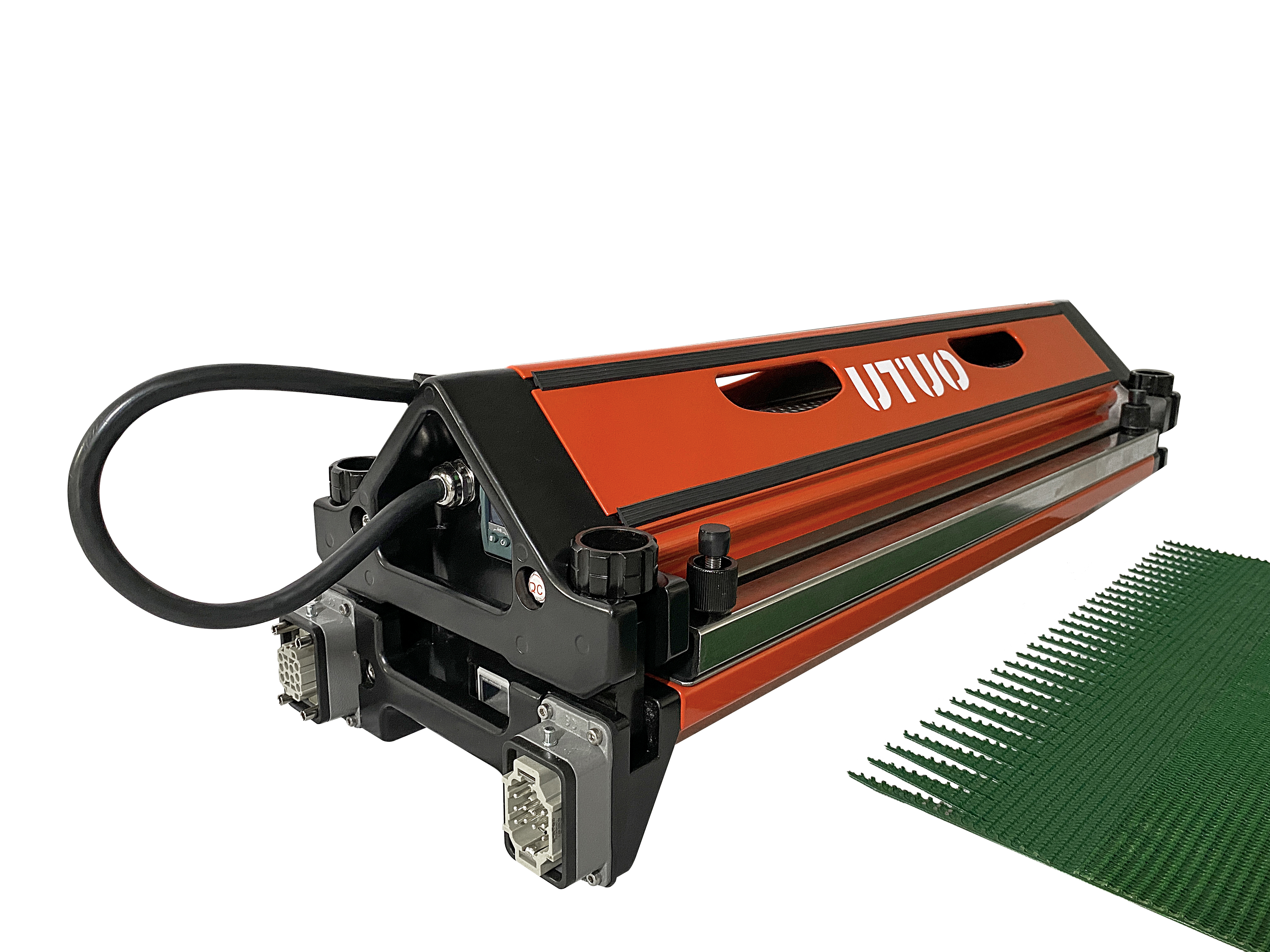

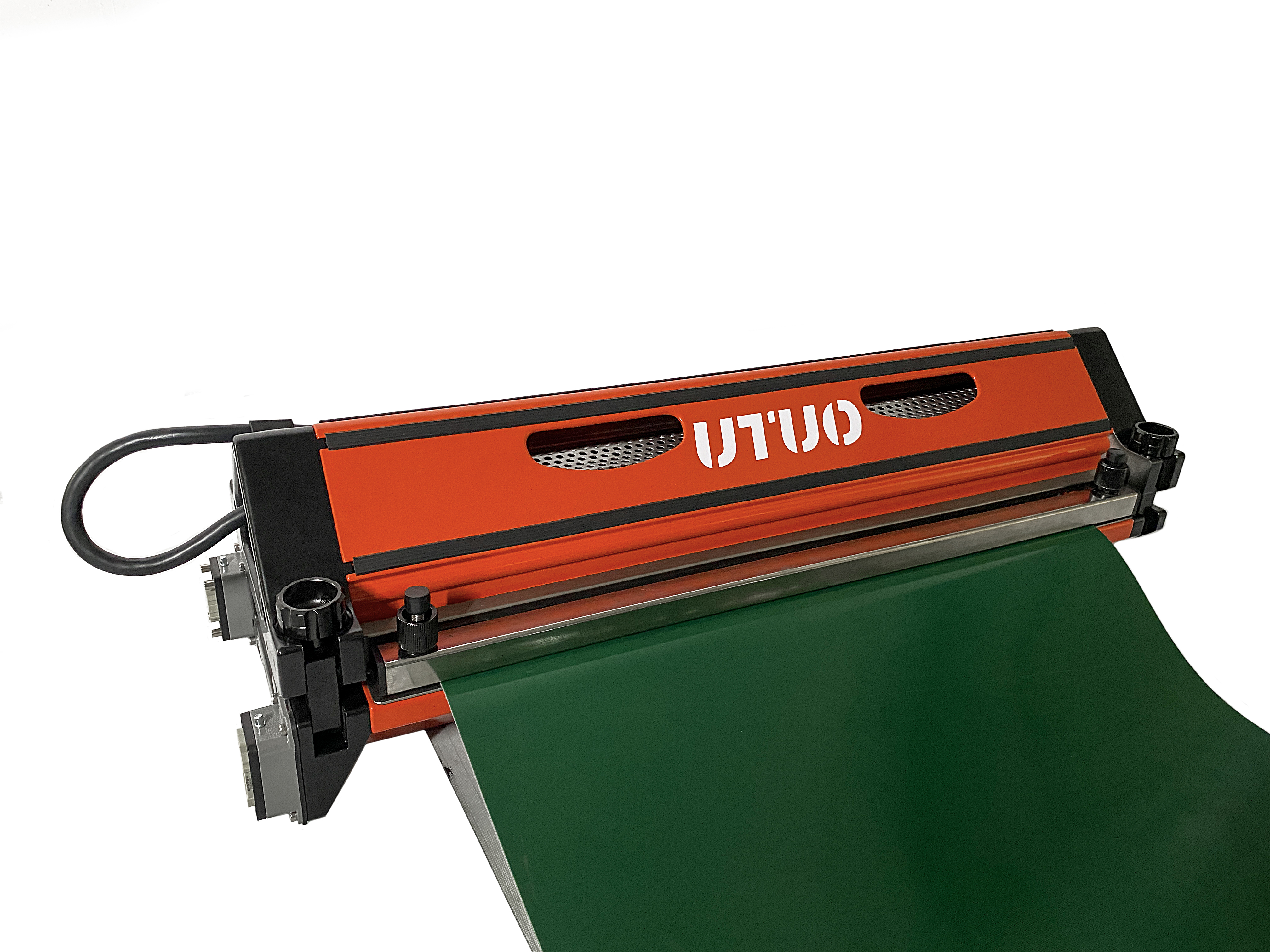

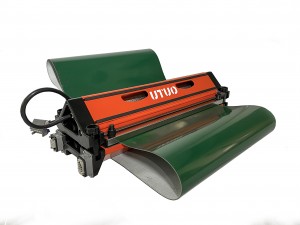

UTUO splice press is an all-in-one solution for splicing PVC/PU conveyor belts.
No external control box, air pump, or water cooling tank are required. UTUO presses are provided with electric heating and built in air cooling. The splice process runs fully automated.
• Splice pressure is applied by an internal compressor, max. 2 bar (28 psi)
• Heats up to a splice temperature of max. 200°C (392°F)
• Keeps it at the splice temperature (adjustable dwell time)
• Cools down to the cooling temperature (safe temperature to take the belt out)
• For thicker belts a preheat temperature and preheat dwell time can be applied
• The bottom heating can be set lower or higher than the top heating

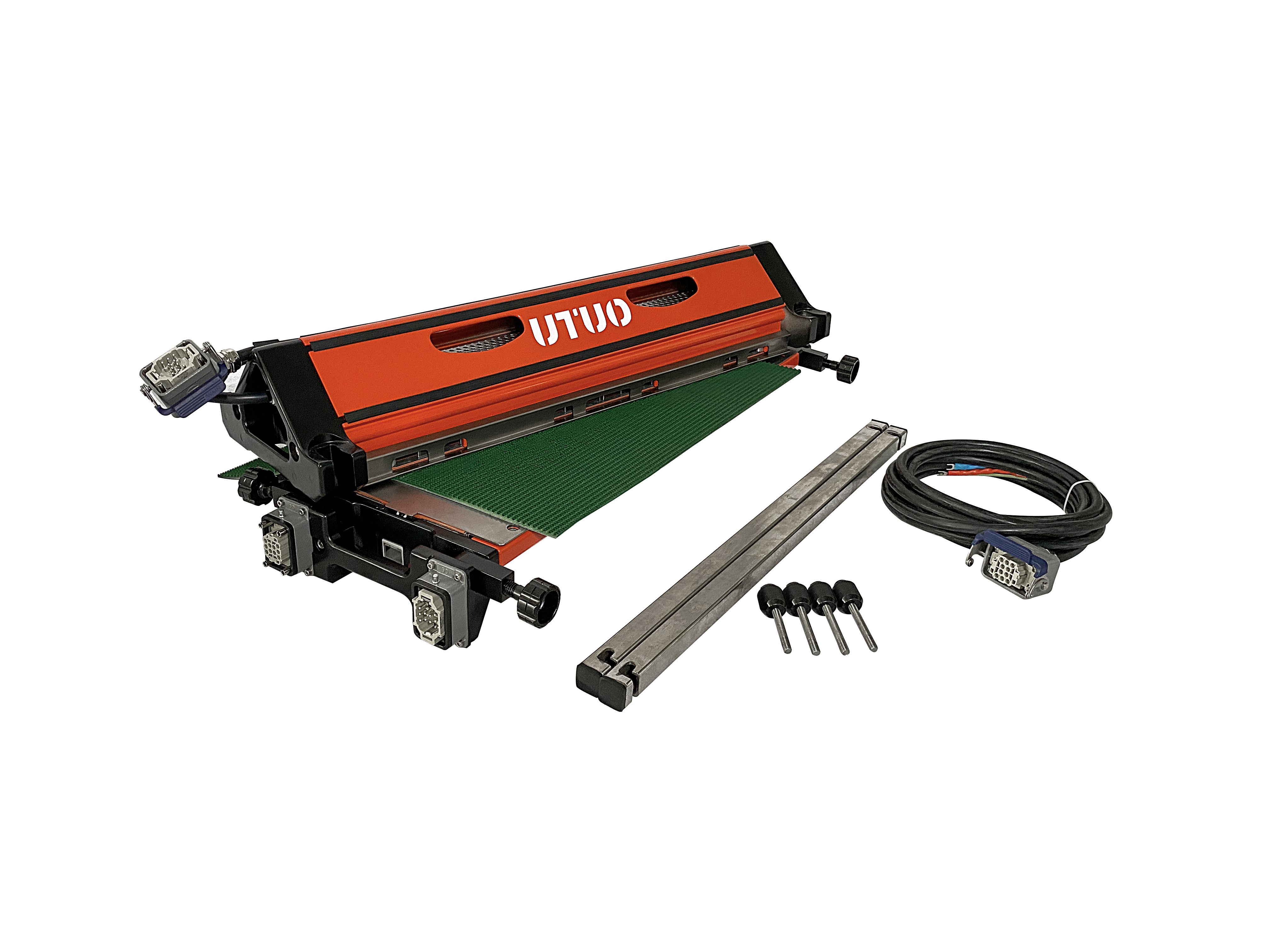

Main Components of conveyor belt joint machine
• Clamp Bar Studs & Thumbnuts
• Top Press Beam
• Handle
• Press Connector Bolts
• Clamp Bar
• Bottom Press Beam
• Start Button (green)
• Eurotherm Heat and Time Controller Eurotherm
• Umbilical Power Cable Connector
• Pressure Controller
• Pressure Relief Button (red)
• Main Power Cable Connector
