Profiles for PVC & PU conveyor belts

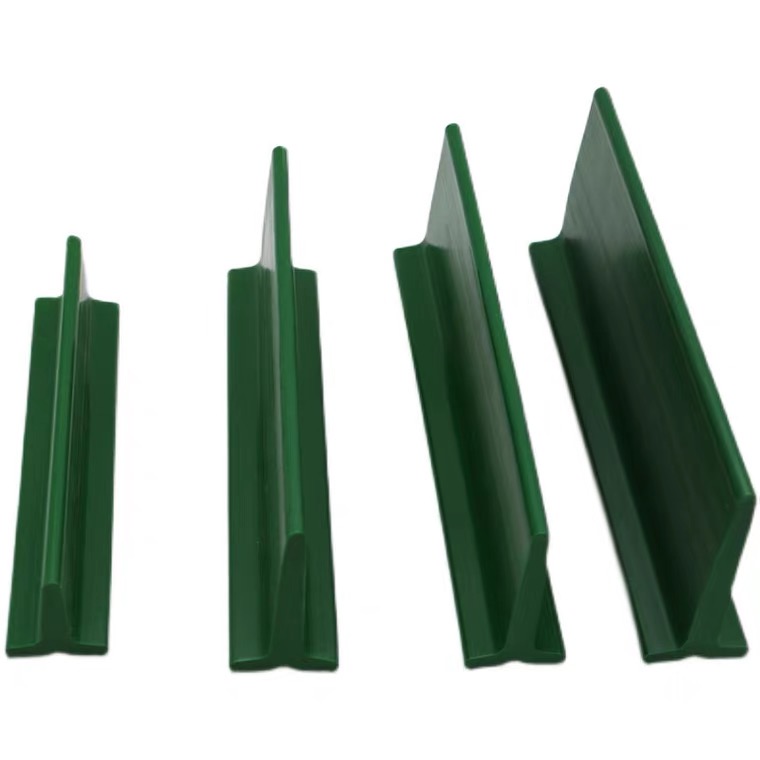

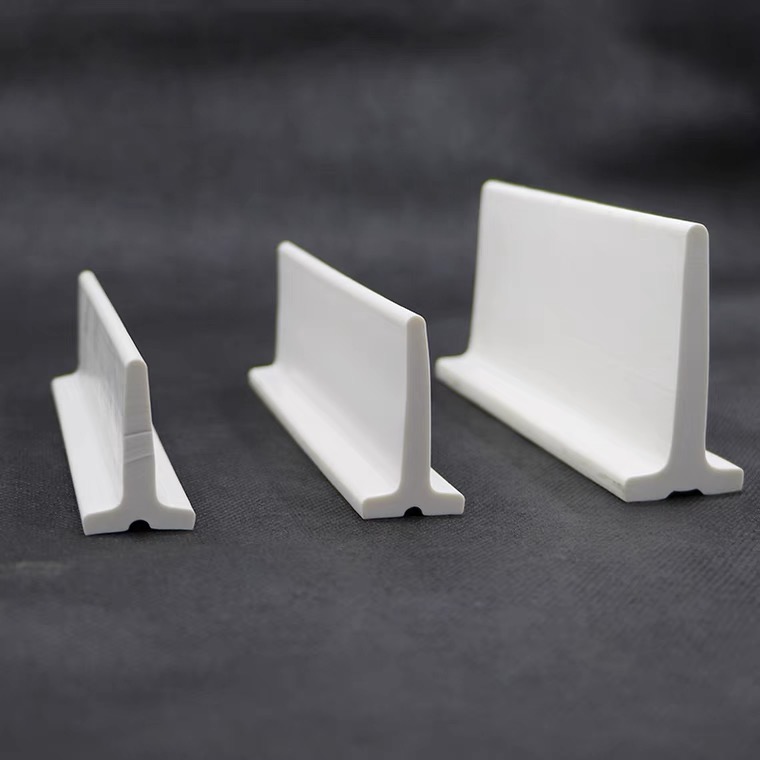

The guides, profiles,cleats and sidewalls that we are manufacturing are mainly made from PVC and Polyurethane placed on belts.
It is flexible,reistant to compression for elevating, containing, guiding, dividing etc. The profiles are available in a wide variety of heights. .
| Cleat Technical Data | |||||||||
| Type | Height | Width of Bottom* Height | color | material | Hardness | Min Pulley Dia | Thickness of Bottom | Thickness of Upper | |
| (mm) | (mm) | (shore(A) | (mm) | (mm) | (mm) | ||||
| T10 | 10 | 10×10 | white/green/black | PVC | 60 | 90 | 3 | 3.5 – 5.0 | |
| T20 | 20 | 20×20 | white/green/black | PVC | 60 | 90 | 3.5 | 4.0 – 5.5 | |
| T30 | 30 | 25×30 | white/green/black | PVC | 60 | 120 | 4.5 | 5.0 -6.5 | |
| T40 | 40 | 25×40 | white/green/black | PVC | 60 | 120 | 4.5 | 5.0 -7.0 | |
| T50 | 50 | 25×50 | white/green/black | PVC | 60 | 120 | 4.5 | 5.5 – 7.5 | |
| T60 | 60 | 40×60 | white/green/black | PVC | 60 | 150 | 5 | 5.5 – 7.5 | |
| T70 | 70 | 45×70 | white/green/black | PVC | 60 | 160 | 6 | 6.5 – 9.0 | |
| T80 | 80 | 47×80 | white/green/black | PVC | 60 | 180 | 6.5 | 6.5 – 10.0 | |
| T90 | 90 | 50×90 | white/green/black | PVC | 60 | 200 | 6.5 | 7.0 – 10.5 | |
| T100 | 100 | 53×100 | white/green/black | PVC | 60 | 220 | 6.5 | 7.0 – 10.5 | |
| Guide Technical data | |||||||||
| Spec | Width of Bottom | Width of upper | Height | Color | material | Hardness | Min Pulley Dia (mm) |
||
| bxh(mm) | (mm) | (mm) | (mm) | (shore(A) | Front side | Back side | |||
| 6×4 | 6 | 3 | 4 | white/green/black | PVC | 60 | 40 | 30 | |
| 8×5 | 8 | 4 | 5 | white/green/black | PVC | 60 | 50 | 40 | |
| 10×6 | 10 | 5 | 6 | white/green/black | PVC | 60 | 70 | 60 | |
| 13×8 | 13 | 6 | 8 | white/green/black | PVC | 60 | 110 | 80 | |
| 17×11 | 17 | 8 | 11 | white/green/black | PVC | 60 | 180 | 120 | |

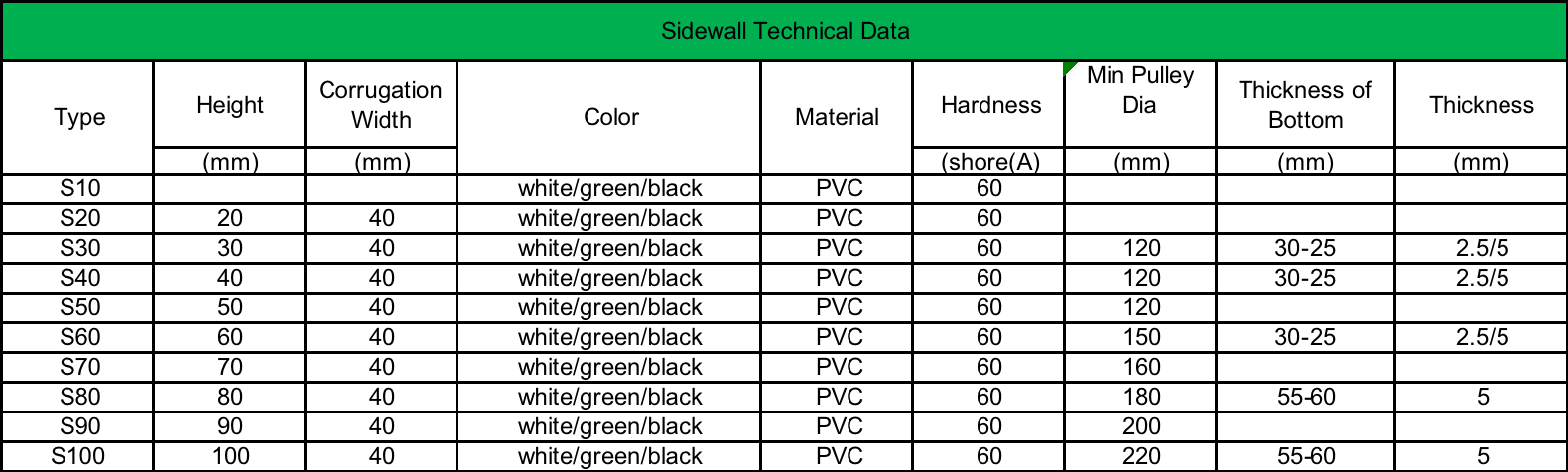

Utuobelting can produce PVC conveyor belts with sidewall, gudie and cleat as your requirement.
