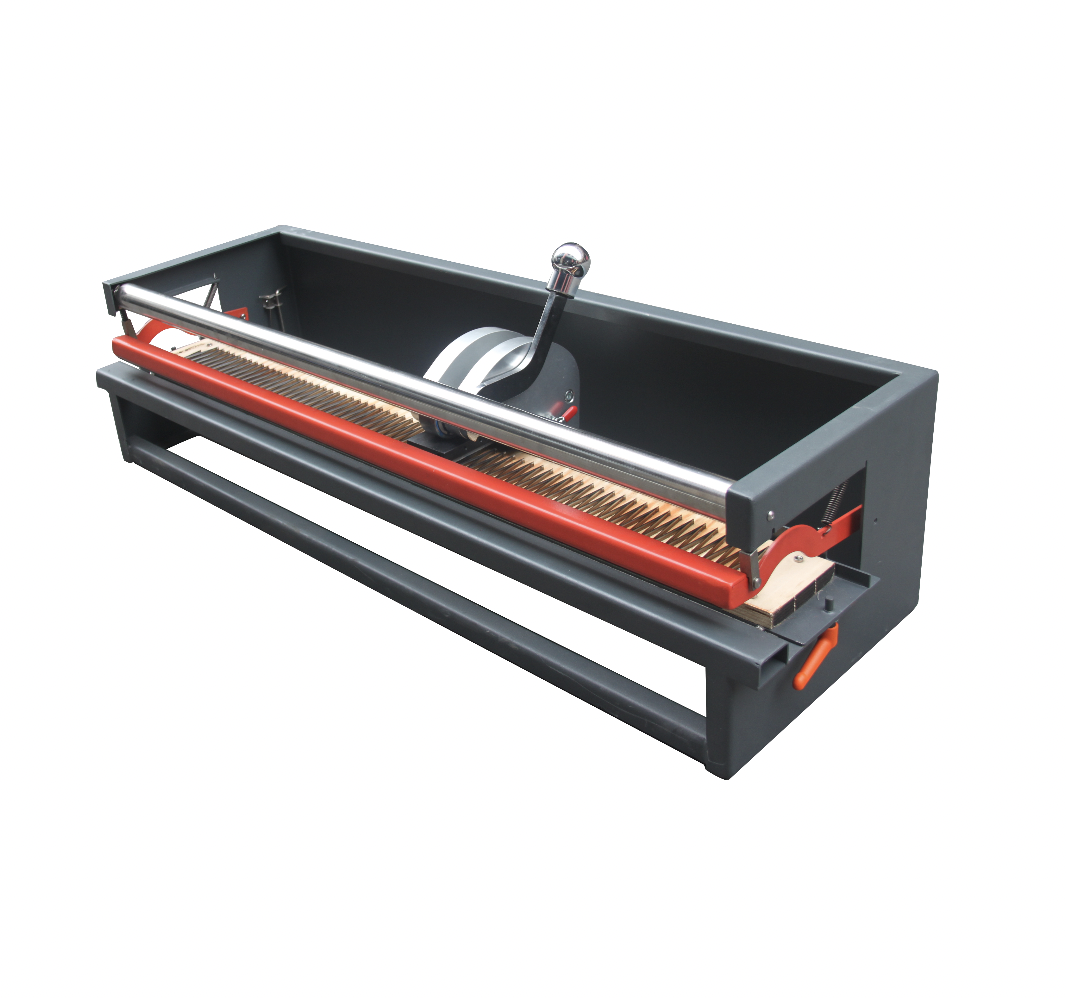

Manual Finger Puncher is specially designed for assembling conveyor belts on site, Finger joints can be produced across any belt width.
The advantages of our finger puncher are light weight, simple and fast handling, usability for all band widths.Light weight and portable design, very good choice for outdoor work use, no need electric power, no need air compressor, no need bring hydraulic pump etc.
| Model |
UB300 |
UB600 |
UB900 |
UB1200 |
UB1500 |
| Machine length (mm) |
530 |
890 |
1120 |
1490 |
1750 |
| Machine Width (mm) |
390 |
390 |
390 |
390 |
390 |
| Machine Height (mm) |
380 |
380 |
380 |
380 |
380 |
| Machine Weight (kg) |
19 |
27 |
36 |
41 |
47 |
| Packing Weight (kg) |
35 |
50 |
65 |
74 |
80 |
| Packing size (mm) |
580x500x480 |
1010x500x480 |
1330x500x480 |
1500x510x480 |
1780x510x480 |
