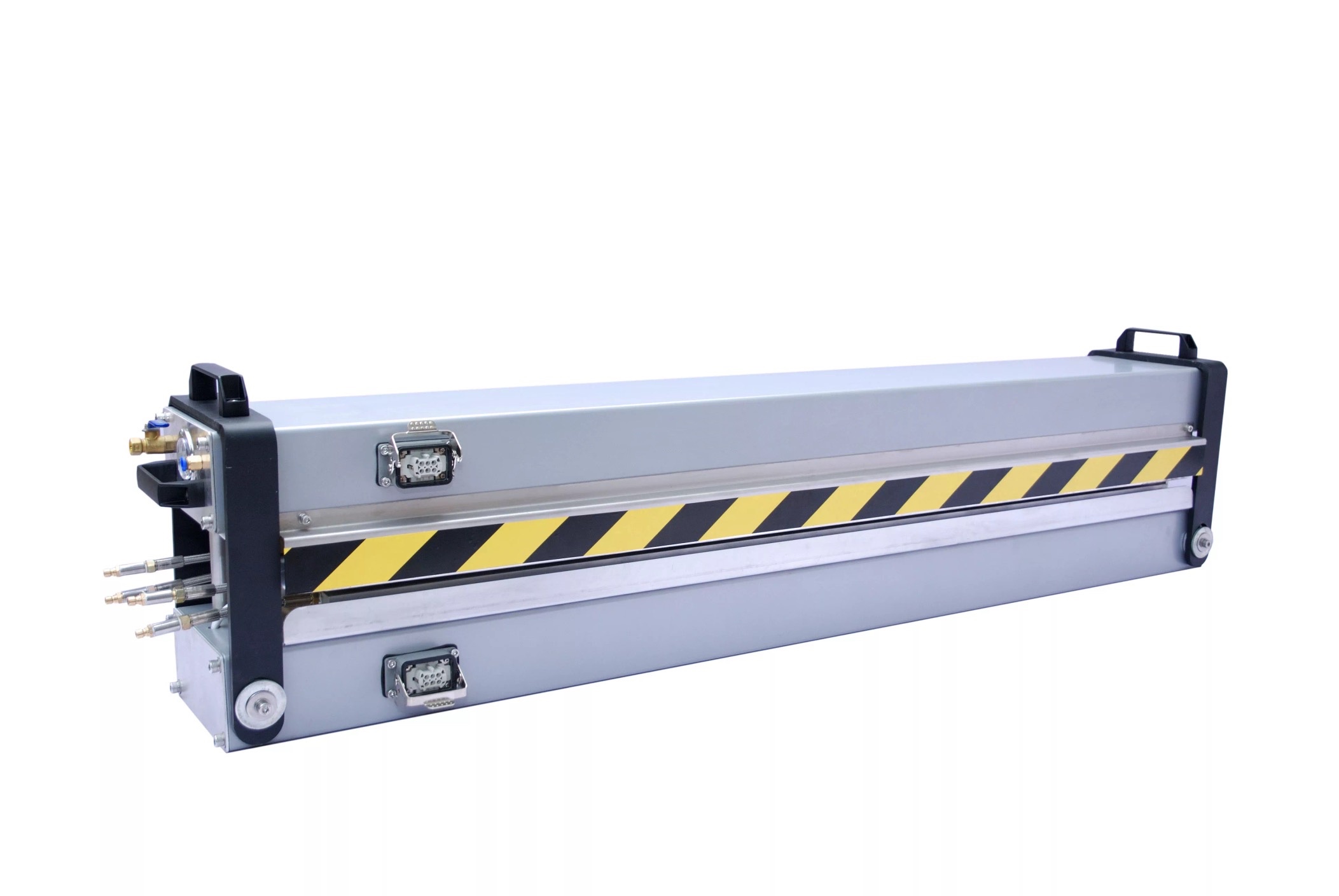

• Heating to 180℃,about 15~20 mins;180℃ cooling down to 60℃ about 3~5mins (accords to different size press), temperature error(on 650mm Up and bottom hot plate )is less than 3℃.
Reliable and automatic Temperature Control Panel with time control.
• Water cooling pump
Long life time and fast splicing.
If the press is required for workshop use,
Opening system & steel housing is Optional.
• Voltage: 220V or 380V, if special voltage freely inform us.
Standard width: 1m, 1.6m,2m ect. We can prodce as requirement.
| Model |
UW600
|
UW900
|
UW1000
|
UW1200
|
UW1600
|
UW2000
|
| Effective Length (mm) |
600
|
900
|
1000
|
1200
|
1600
|
2000
|
| Effective Width (mm) |
150
|
150
|
150
|
150
|
150
|
150
|
| Weight upper Part (KG) |
18
|
30
|
35
|
35
|
57
|
94
|
| Weight Lower Part (KG) |
20
|
30
|
41
|
41
|
63
|
102
|
| Total Weight (KG) |
45
|
65
|
87
|
87
|
125
|
196
|
| Overall Length (mm) |
720
|
1020
|
1410
|
1410
|
1910
|
2420
|
| Overall Height (mm) |
310
|
310
|
310
|
310
|
390
|
390
|
| Max Pressure (Bar) |
2
|
2
|
2
|
2
|
2
|
2
|
| Max Temperature (℃) |
200
|
200
|
200
|
200
|
200
|
200
|
| Packaging List(L*W*H) (mm) |
1460*500*540
|
1670*520*540
|
2050*480*540
|
2060*480*540
|
2450*550*490
|
2950*600*490
|
| Packing Weight (KG) |
72
|
90
|
135
|
145
|
200
|
264
|
| Power(W) |
2016
|
3024
|
3696
|
3300
|
5760
|
7560
|
