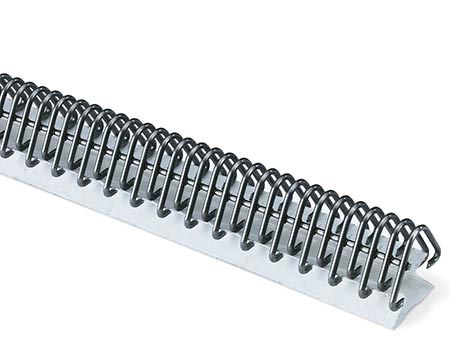

Conveyor belt lacing can be used to install a new conveyor belt or repair an existing belt on a powered belt conveyor. These mechanical fasteners join the ends of the belt to form a loop.
| Type | MODEL NO | LENGTH of Belt Fasteners per pcs | THICKNESS OF BELT（MM） | Q’ty (PCS../BOX） |
| Welded Hook Fasteners / Wire Hooks Fasteners |
0# | 300mm | 0.7-2mm | 12 pcs/ box |
| 1# | 300mm | 1.6-3.2 mm | 12 pcs/ box | |
| 2# | 300mm | 3.0-4.0 mm | 12 pcs/ box | |
| 3# | 300mm | 4.0-5.0 mm | 12 pcs/ box | |
| 4# | 300mm | 5.6-6.4 mm | 12 pcs/ box | |
| 5# | 300mm | 7.1-7.9 mm | 12 pcs/ box | |
| 6# | 300mm | 8.0-9.0 mm | 12 pcs/ box | |
| 7# | 300mm | 9.0-10mm | 12 pcs/ box | |
| Alligator Fasteners | 15# | 290mm | 8 pcs / box | |
| 20# | 290mm | 8 pcs / box | ||
| 25# | 290mm | 8 pcs / box | ||
| 35# | 290mm | 8 pcs / box | ||
| 45# | 290mm | 7-9mm | 8 pcs / box | |
| 55# | 290mm | 9-11mm | 8 pcs / box | |
| 65# | 290mm | 11-13mm | 8 pcs / box | |
| 75# | 290mm | 14-16mm | 8 pcs / box | |
| Alligator Fasteners | 1# | 1.2M | 0.5-1.5mm | 8 pcs / box |
| 7# | 1.2M | 2.0-3.0mm | 8 pcs / box | |
| 15# | 1.2M | 3.0-4.5mm | 8 pcs / box | |
| 25# | 1.2M | 4.0-5.5mm | 8 pcs / box | |
| Butterfly Fasteners | 32# | 1.2M | 2.0-3.8mm | 8 pcs / box |
| 48# | 1.2M | 3.0-5.8mm | 8 pcs / box | |
| 64# | 1.2M | 5.8-10mm | 8 pcs / box |
